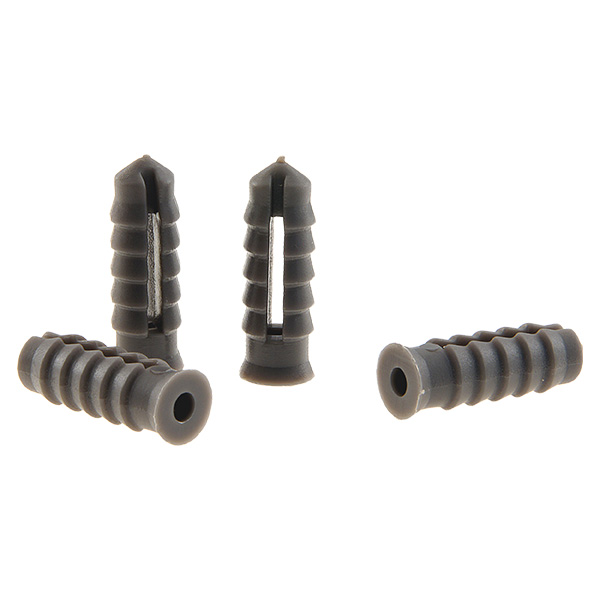

G002-02-02 Plastic Wall Plug
English Name: Plastic Wall Plug / PE Gray Wall Anchor / Medium-Duty Expansion Anchor
Material: PE (Polyethylene)
Color: Gray
Product Description: These are classic cylindrical plastic wall anchors, molded in a durable gray PE. The exterior is covered in aggressive ribs or fins. They are engineered to provide a secure, non-permanent fastening point in hard substrates like masonry, concrete, brick, and block, ready for standard screws.
Product Features:
Size Specification: Ø7mm x 22mm.
Ø7mm (Diameter): This is a common size, indicating a standard 7mm drill bit is required (often equivalent to a 9/32 inch bit in the US).
22mm (Length): Provides sufficient length for reliable grip without drilling excessively deep.
Material (PE): Made from Polyethylene, offering excellent toughness, high impact resistance, and durability in damp or varied environments.
Ribbed Exterior: The aggressive, saw-toothed outer walls are crucial for maximizing friction with the substrate, preventing the anchor from spinning or loosening during installation or use.
Expansion Fixing: The internal bore is tapered, causing the entire anchor body to expand and firmly grip the side of the drilled hole when the screw is driven in.
Functions & Benefits:
Creates Anchor Point: Enables safe and reliable mounting of fixtures and items directly onto hard wall materials.
Boosts Pull-out Strength: Significantly improves the fastener’s load-bearing capacity by distributing stress across the hole surface.
Simple, Fast Installation: Designed for easy setup—drill, insert, drive the screw.
Installation Tips:
Drill Bit: Always match the drill bit diameter to the anchor diameter (7mm).
Depth: Drill the hole slightly longer than the 22mm anchor length for complete seating.
Hole Prep: Clean debris and dust from the hole to ensure maximum grip and anchor effectiveness.
Screw: Use the correctly sized screw to ensure optimal expansion of the plug.
Application Areas:
Residential Decor & Mounting: Installing window treatments (curtains/blinds), wall art, light fixtures, and shelving units.
General Construction: Used for light-to-medium load fastening in interior and exterior construction.
Electrical/HVAC: Securing conduit, cable trays, junction boxes, and piping.
All DIY Projects: Essential hardware for any home project requiring a secure mount on a solid or hollow base material.
