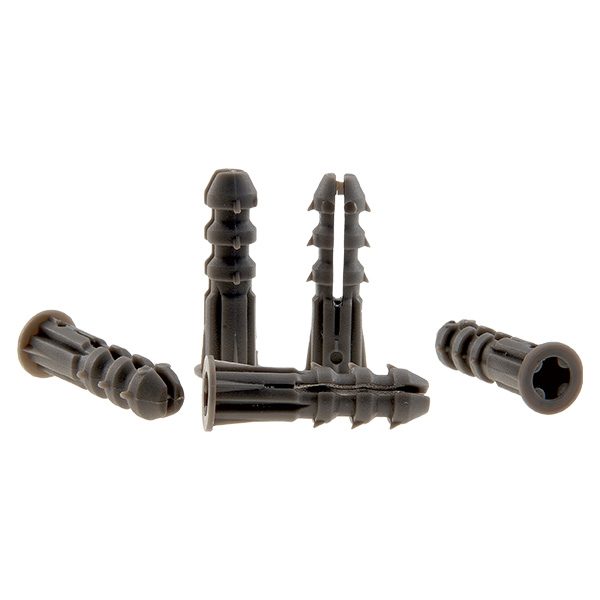

G002-03-01 Heavy-Duty Plastic Wall Plug
English Name: Heavy-Duty Plastic Wall Plug / PE Gray Ribbed Anchor / Large Expansion Anchor
Material: PE
Color: Gray
Product Description: This is a robust, cylindrical plastic wall anchor. It features a ribbed exterior for superior grip and is made from durable PE material, designed to create strong, secure mounting points in masonry, concrete, brick, or drywall for heavy-duty fastening applications.
Product Features:
Size Specification: Ø8mm x 32mm.
Ø8mm (Diameter): This large diameter requires an 8mm drill bit (approximately 5/16 inch in US standard sizing).
32mm (Length): The length is 32 millimeters, providing deep embedment for excellent pull-out resistance under medium-to-heavy loads.
Material (PE): Constructed from high-quality Polyethylene. PE is known for its high toughness, impact resistance, and durability in both interior and exterior construction environments.
Ribbed Exterior: The aggressive, saw-toothed ribs on the exterior are designed to maximize the friction against the hole wall, preventing the anchor from rotating or spinning during installation.
Expansion Fixing: When the screw is driven, the interior structure forces the anchor to expand outward, securing it tightly within the substrate and creating a highly stable mounting point.
Functions & Benefits:
Secure Fixing Point: Provides a stable anchor for safely mounting objects to various wall types where screw threads alone would fail.
Enhances Load Capacity: The expansion mechanism distributes the load, significantly increasing the screw’s pull-out strength for securing heavier items.
Easy Installation: The process is straightforward: drill, insert the plug, and fasten the screw.
Installation Tips:
Drill Bit: Match the drill bit diameter to the 8mm anchor size.
Depth: Drill the hole slightly deeper than the 32mm anchor length to ensure the plug is fully seated.
Prep: Clean dust and debris from the hole before insertion for an optimal fit.
Screw Selection: Use the correct size and type of screw to guarantee full and effective expansion of the anchor.
Application Areas:
Home Improvement: Mounting heavy curtain rods, large shelving units, TV mounts, and heavy wall cabinets.
Construction & Trades: Used for medium-to-heavy load fastening in commercial and residential construction.
Utility Installation: Securing electrical boxes, piping, and mechanical equipment to walls.
DIY Projects: Ideal for any project demanding a high degree of stability and holding power in solid or hollow walls.
