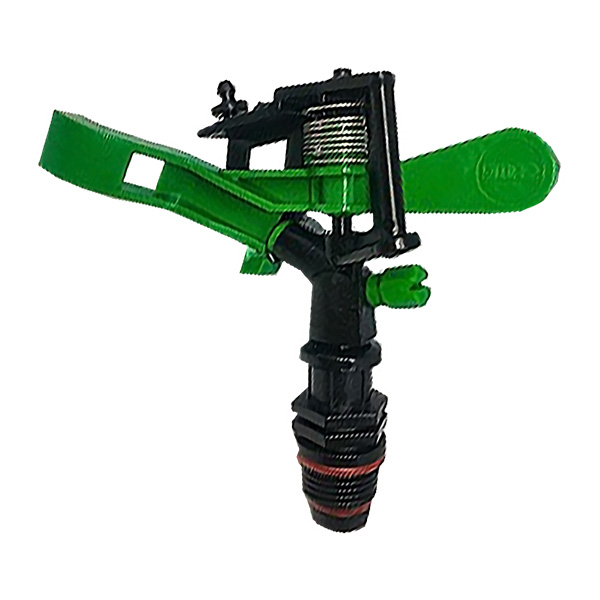

S104-3 1/2″ Plastic Dual-Outlet Adjustable 360° Sprinkler Head
English Name: 1/2″ Plastic Dual-Outlet Adjustable 360° Sprinkler Head
Material: Plastic
Color: Green (Main Component), Black (Main Body)
Product Description: A 1/2-inch dual-outlet sprinkler head. The main body features a multi-layered structure with threads at the base for easy installation. It features two green nozzles and impact arms, driven by a spring mechanism that enables rotation under water pressure. The design allows for adjustment of the spray arc. It includes a seal ring to ensure connection integrity.
Product Features:
Material: Plastic: The product is primarily made of plastic, offering advantages such as being lightweight, corrosion-resistant, and cost-effective. The plastic material is also suitable for outdoor use, is rust-resistant, and is easily mass-produced.
1/2″ Dual-Outlet Sprinkler: The 1/2 inch size is a common standard, facilitating connection to various irrigation system pipes or fittings. The “Dual-Outlet” design means water is discharged from two separate nozzles or exit points, aiding in broader or finer water distribution.
360° Water Discharge: This sprinkler achieves full, uniform, 360-degree water output. The reciprocating motion of the impact arm distributes the water flow evenly within a circular area. This is highly effective for areas requiring large-scale, uniform moisture.
Adjustable Spray Arc (90°/180°/270°/360°): This is a key feature. Users can adjust the sprinkler’s spray angle from a sector arc (90°, 180°, 270°) to a full circle (360°) according to actual needs. This high degree of flexibility makes it suitable for various complex or irregular irrigation areas, preventing water wastage.
Impact Design: The impact arm and spring mechanism are characteristic of a typical impact sprinkler design. Water flow impacts the arm, causing it to deflect, and the spring returns it to its original position, driving the sprinkler to rotate and achieve intermittent spraying, which aids in water distribution.
Robust Durability: The plastic material, combined with a sensible structural design, ensures good durability in outdoor environments.
Easy Installation: The threaded connection design makes both installation and removal relatively simple and convenient.
Good Sealing: Equipped with a seal ring to help ensure a tight connection and effectively prevent leakage.
Product Functionality:
Automatic Irrigation: Used in automatic irrigation systems for agriculture, landscaping, or home gardens, providing efficient, uniform, and adjustable moisture distribution.
Precise Spray Arc Control: Allows flexible adjustment of the spray angle based on site requirements, preventing water from spraying into unwanted areas (like sidewalks or buildings).
Efficient Water Resource Utilization: Effectively conserves water resources through precise control of the spray range.
Application Areas:
Agricultural Irrigation: Small to medium-sized farmlands, orchards, vegetable sheds, especially for edge areas or irregular plots.
Landscaping and Greenery: Parks, community green spaces, private gardens, and large lawns, particularly areas with walls, fences, or other obstacles.
Home Gardening: Used for automatic watering of lawns or gardens, with the ability to adjust the spray angle according to the garden layout.
Sports Fields: Irrigation of edge areas for sports turf like soccer or baseball fields.
